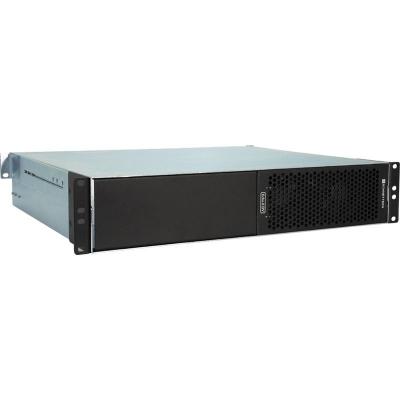

Echo II DV T5 Rackmount Thunderbolt 5 Expansion System

Create a Broadcast Studio in a 2U Rack Space
Run Two High-bandwidth Cards at Full 6000 MB/s – Simultaneously
Do you use one of the hot new laptops or mini desktops with ultra-high-performance Thunderbolt™ 5 ports in your creative pro workflow? Without PCIe expansion slots, those computers’ onboard processing power alone is probably not enough to get your job done. You still need the specialty cards that add needed video and audio I/O, transcode data, and connect to high-speed networks and shared storage.

Sonnet Echo™ II DV T5 Rackmount eliminates the limitation. This professional Thunderbolt 5 to PCIe card expansion system connects two full-length, single-width PCIe cards to your computer, each to a separate Thunderbolt port for maximum bandwidth to each card — it’s the ultimate solution for connecting cards with high bandwidth requirements.

Specially Designed to Support Maximum Performance from Two Cards
Two PCIe 4.0 Card Slots. Dual Thunderbolt 5 Interfaces for Double the Bandwidth.
Some of the latest computers — including MacBook Pro (M4 Pro/M4 Max) , Mac mini (M4 Pro), Mac Studio (M3 Ultra/M4 Max), and select Windows PCs — offer multiple Thunderbolt 5 ports, each with its own independent bus delivering 6000 MB/s of PCIe bandwidth. Echo II DV T5 Rackmount is designed to fully exploit that speed. Instead of sharing bandwidth across slots, it uses a dedicated Thunderbolt 5 interface for each slot, delivering full PCIe bandwidth to both cards at the same time. This means you can run two high-demand PCIe cards at full performance simultaneously — perfect for DV I/O, ultra-fast NVMe storage, and multi-port 10 and 25Gb Ethernet workflows.

2x the Bandwidth!
Separate Thunderbolt 5 Interface for Each Card Slot
Echo II DV T5 provides full Thunderbolt PCIe bandwidth to each slot when connected to two computer Thunderbolt ports that also provide independent PCIe bandwidth — 6000 MB/s with Thunderbolt 5 computers, and 2880 MB/s with Thunderbolt 4 and 3 computers.

Dual Thunderbolt 5 Ports Connection Option for Maximum Performance
Connect Two DV I/O or Other High-bandwidth Cards Directly to Two Thunderbolt 5 Ports On Your Computer for Full 6000 MB/s PCIe Bandwidth to Each Card

Single Thunderbolt Port Connection Option
Also Works with Computers with Only One Available Thunderbolt Port to Support Two Cards

Adds Connectivity and Capabilities
Connects two high-performance non-GPU PCIe cards via one or two Thunderbolt cables to your computer without expansion slots.

Thunderbolt 5 to PCIe Device
Supports full Thunderbolt 5 PCIe bandwidth (6000 MB/s) to each installed card.

Dual Thunderbolt 5 Interfaces, Two PCIe 4.0 Slots
One interface per PCIe 4.0 slot enables maximum performance from two cards at the same time.

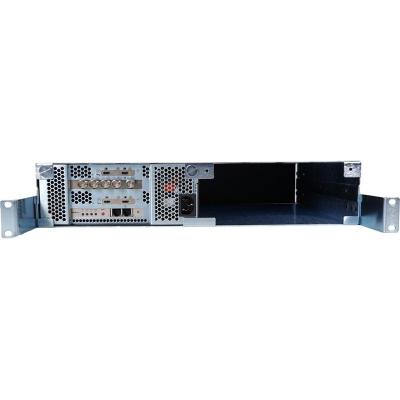

Four Thunderbolt 5 Ports
Two ports connect to the computer for maximum performance; secondary ports support daisy-chaining of Thunderbolt interfaces to enable single-cable connection to the computer.

Broad PCIe Card Compatibility
Every Thunderbolt compatible, single-width, non-GPU card supported regardless of length or height.

Connect to Two Computers
Each Echo II DV T5 PCIe slot operates independently of the other, enabling you to connect them to separate computers.

Pro Power
Two 75W auxiliary PCIe power connectors for power-hungry cards; secondary Thunderbolt ports provide 15W of power each to connected peripherals.

Remarkably Quiet
Dual temperature-controlled, variable-speed Noctua fans rated at 17dBA automatically and quietly cool the cards.

Rugged 2U Steel Rackmount Housing + Optional Expansion Space
Provides robust and secure protection in server and DIT racks; space for an additional Sonnet expansion module (sold separately).

Mac Compatible
Supports all M series Macs, and Intel Macs with Thunderbolt 3 ports.

Windows Compatible
Supports Windows computers with Thunderbolt 5, 4, or USB4 ports.

Linux Compatible
Supports Linux computers with Thunderbolt 5, 4, or USB4 ports.

EAN # : 732311014154
