RRP: N/A
Your Price: N/A
Mfr. Part #: MAR-90570009
Our Part #: MARELNPROCVCTC4
Description

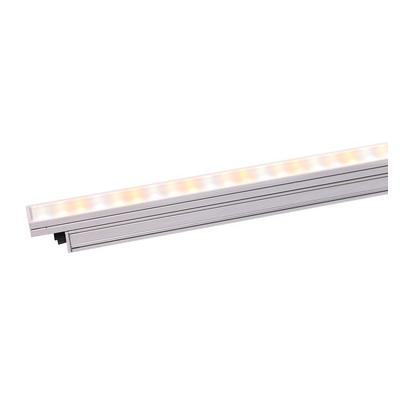

Martin Exterior Linear Pro Cove CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 100 degree beam angle, they are ideal for striking indirect lighting of ceilings, walls and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.
Featuring highly efficient color temperature control (2700K, 4000K, 6500K), a high color rendering index (CRI) and 12 LEDs/ft, Cove CTC models deliver robust output of 800 lm/ft, perfect for illuminating high walls and surfaces while maintaining lumen intensity. Packed with intelligent features, Cove CTC lights include multiple power modes, Remote Device Management (RDM), simple-to-adjust total lumen output for low power requirements, DMX-controllability, and easy installation via the integrated universal power supply.
With a high focus on sustainability, these fixtures can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design allows for a range of standard or custom bracket solutions.

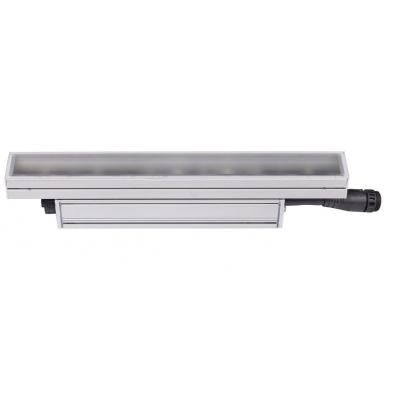

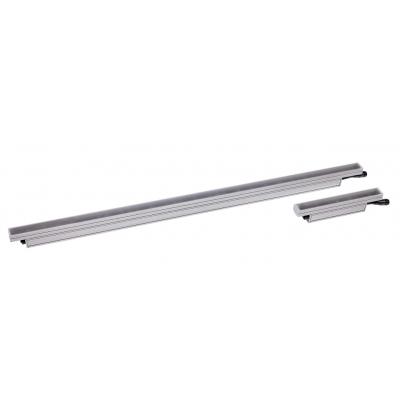

The slim design makes these lights easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.
EASE OF INSTALLATION
The slim design makes them easier to integrate into architectural elements discreetly and with less structural requirements. A smart mounting plate design allows for a variety of standard or custom bracket solutions.
EFFICIENT OPERATION
With more than 60 lm/W, Exterior Linear Pro CTC fixtures are highly efficient. Multiple power modes (12W/10W/5W, including ASHRAE compliance) can be set via Remote Device Management (RDM) to reduce power consumption as needed.
SUPERIOR COLOR TEMPERATURE CONTROL
Cold, neutral, and warm LEDs are included for precise color temperature control from 2700K to 6500K at high efficacy with 12 LEDs/ft. They also feature a high color rendering index (CRI) for accurate reproduction of colors.
SMART INFRASTRUCTURE
Fixtures are DMX-controllable and easy to install due to their integrated universal power supply. They can also be daisy-chained using a combined power and data connector, which enables long fixture runs for simpler infrastructures.
Features:
• 100° beam angle for indirect lighting applications
• Selectable segment modes (1, 4 or 8 segments)
• Selectable power consumption (12W/10W/5W) per foot
• 5W/ft power mode meets ASHRAE standards for linear facade lighting
• Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
• Hybrid power and data connector for easy daisy-chained configurations
• DMX and RDM control
• Integrated magnetic switch for local diagnostics
• Rugged IP66 housing designed for permanent outdoor installations
• Low weight 0.8 kg/ft (1.9 lbs/ft)
• Compact design - 40mm (1.57 inch) width
