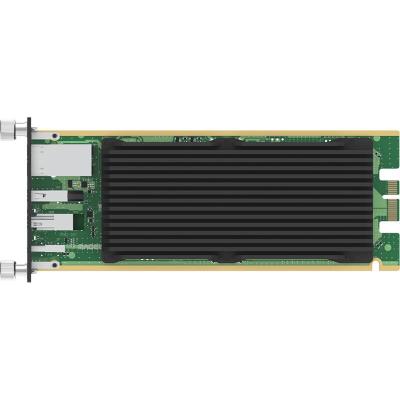

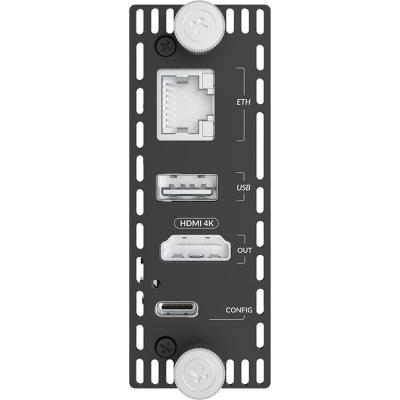

Pro Convert for NDI® to HDMI 4K Module

• Decoding module for rack-mounted centralized deployment, converting a live IP stream into 4K HDMI signal
• A hot-swappable module to be installed in Modator Chassis
• Supports NDI® High Bandwidth, NDI® HX2, or NDI® HX3 sources or H.264/H.265 streams
• Centrally manageable via the Modator Chassis and Magewell Control Hub

Output Features
• Support for up to 4096x2160 60fps HDMI output
• Support for 96KHz, 16-bit 8-channel audio streams

Decoding Features
• Support for decoding 4Kp60 IP streams
• Support for decoding NDI® High Bandwidth?NDI® HX2 and NDI® HX3
• Discover NDI® devices across network segments
• Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP and TVU ISSP
• Support for NDI® 5.x
• Support for decoding alpha channel

Others
• Very low latency
• Configure through the touch screen of Modator Chassis, Web GUI or Control Hub
• Image flip for inverted projector installations and safe area controls
• Automatic output optimization for target display with integrated up/down conversion
• HTTP-based APIs for custom integration
• 2-year warranty

EAN # : 6936572401645
