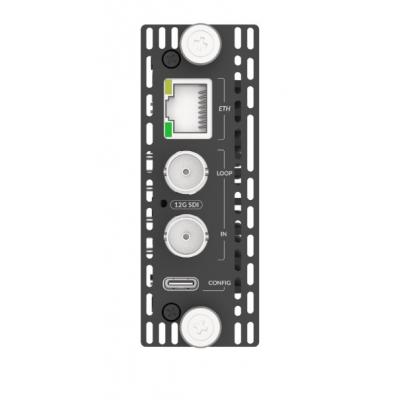

Pro Convert 12G SDI 4K Plus Module

Pro Convert 12G SDI 4K Plus Module is a hot-swappable module to be installed in the Magewell Modator chassis. It is capable of converting a 12G-SDI signal up to 4Kp60 into high-bandwidth NDI® stream, providing a higher-density product form factor and a scalable solution for IP-based production and distribution deployments.

Key Features:
• Max input & loop through signal at 4096x2160 60fps
• 16-channel SDI embedded audio inputs
• Encode NDI® High Bandwidth real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
• Send NDI® streams across network segments
• Remotely control PTZ cameras using protocols of Visca UDP via NDI®
• Supports NDI® 6.2
• Configure through the touch screen of Magewell Modator chassis, Web GUI or Control Hub

Interfaces:
• 1* RJ45 1000Mbps Ethernet port
• 1* USB Type-C port for configuration
• 1* 12G SDI input port
• 1* 12G SDI loop port
• 1* Modator interface for connecting to Modator 2U (hot-swappable)

Web UI:
• Register with Magewell Control Hub for remote centralized management
• Supports configuring and managing via Web UI
• Provide comprehensive information regarding the device and signals in real-time
• Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network connection
• Supports updating firmware
• Supports USB NET
• Supports Microsoft Edge/Firefox/Chrome/Safari/Opera web browsers
• Provides HTTP APIs

EAN # : 6936572401621
