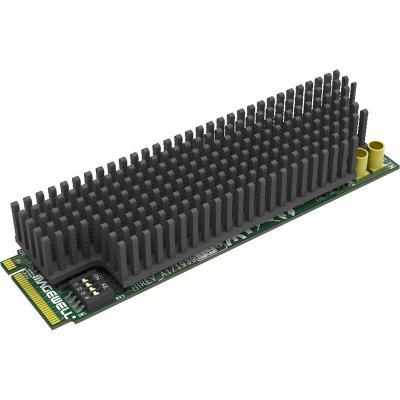

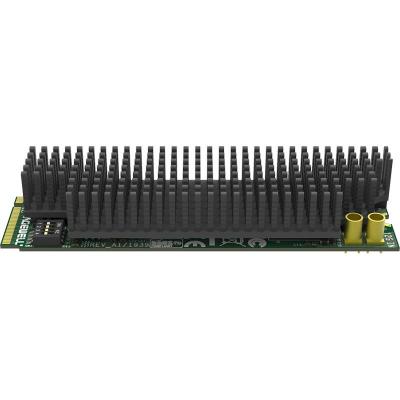

Eco Capture SDI 4K Plus M.2

• Single channel 4K capture card
• Captures SD/HD/3G/6G/12G SDI + embedded audio
• Loop-through SD/HD/3G/6G/12G SDI + embedded audio
• Input Interface: SD/HD/3G/6G/12G SDI
• Supports input resolution up to 4096×2160 pixels
• Loop-through Interface: SD/HD/3G/6G/12G SDI
• Host Interface: M.2 (PCIe Gen2 x4)

Video Engine
• Auto detection of input signal format
• Colour formats conversion
• Low latency mode
• SG-DMA transmission mode
• Multiple replicated capture streams
• Closed caption (SDK required)

Software
• Window & Linux driver and SDK
• Upgradable firmware
• Compatible with Capture Express, Magewell Bridge for NDI®, Plugin for Premiere®

Other Features
• Continuously work for 24hx7
• LED status indicator
• Multiple devices on one host
• On-board dip switch to set card number
• 2-year Warranty

EAN # : 6936572401263
