RRP: £21.66
Your Price: N/A
Mfr. Part #: 43271
Our Part #: LINDY43271
Description

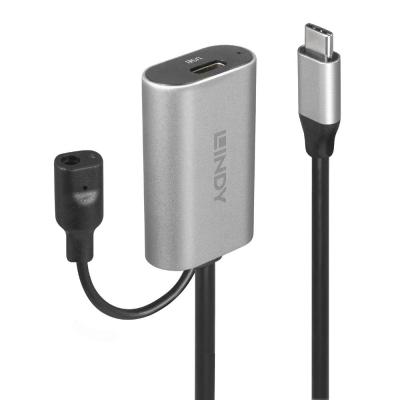

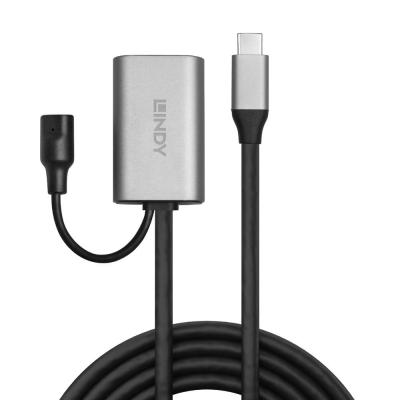

The Lindy USB 3.1 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.1 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.
With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.
Compatible with all USB 3.1 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.
• 5 metre USB 3.1 Active Extension Repeater Lead
• Supports transfer rates up to 5Gbps
• DC socket for connection of an optional external power supply
• Plug & Play
• 2 year warranty
Connectors
• Connector A: USB Type C Male
• Connector B: USB Type C Female
• Power: 3.5/1.35mm DC Connector
• Housing Material: Aluminium
• Connector Plating: Nickel plated shell
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• USB C Male: 11.65x36x6.5mm (0.46x1.42x0.26in)
• USB C Female: (housing): 28.6x45x14.1mm (1.13x1.77x0.56in)
Cable Construction
• Length: 5m (16.4ft)
• Standard: USB 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG+28AWG+22AWG
• Shielding: 85% TC
Specifications
• Supported Bandwidth: 5Gbps
• Nominal Attenuation: -
• Minimum Bend Radius: 36mm (1.42in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C to 40°C (32°F - 104°F)
• Storage Temperature: -10°C to 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.1 Gen 1 / 3.0
Miscellaneous
• Packaging Type: Carton Box
• Packaging Dimensions: 165x165x30mm (6.5x6.5x1.18in)
• Net Weight: 0.198kg (0.44lb)
• Gross Weight: 0.253kg (0.56lb)
• Warranty (Years):2
• Certificated: CE, FCC, RoHS & REACH
Package Contents
• USB 3.1 C/C Active Extension 5m
Purchasing Information
• No.43271
• EAN:4002888432719
The Lindy USB 3.1 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.1 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps.
With a reversible Type C input connector and Type C female port, this extension cable allows Type C devices such as flash drives, smartphones or tablets to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C input device is hard to repeatedly access or when connecting USB devices that can be used at a distance such as multi-interface Type C hubs.
Compatible with all USB 3.1 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.
• 5 metre USB 3.1 Active Extension Repeater Lead
• Supports transfer rates up to 5Gbps
• DC socket for connection of an optional external power supply
• Plug & Play
• 2 year warranty
Connectors
• Connector A: USB Type C Male
• Connector B: USB Type C Female
• Power: 3.5/1.35mm DC Connector
• Housing Material: Aluminium
• Connector Plating: Nickel plated shell
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• USB C Male: 11.65x36x6.5mm (0.46x1.42x0.26in)
• USB C Female: (housing): 28.6x45x14.1mm (1.13x1.77x0.56in)
Cable Construction
• Length: 5m (16.4ft)
• Standard: USB 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.6mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 28AWG+28AWG+22AWG
• Shielding: 85% TC
Specifications
• Supported Bandwidth: 5Gbps
• Nominal Attenuation: -
• Minimum Bend Radius: 36mm (1.42in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C to 40°C (32°F - 104°F)
• Storage Temperature: -10°C to 60°C (14°F - 140°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.1 Gen 1 / 3.0
Miscellaneous
• Packaging Type: Carton Box
• Packaging Dimensions: 165x165x30mm (6.5x6.5x1.18in)
• Net Weight: 0.198kg (0.44lb)
• Gross Weight: 0.253kg (0.56lb)
• Warranty (Years):2
• Certificated: CE, FCC, RoHS & REACH
Package Contents
• USB 3.1 C/C Active Extension 5m
Purchasing Information
• No.43271
• EAN:4002888432719
EAN # : 4002888432719
| Features | |
|---|---|
| Length | 5.0m |
| USB C Male to C Female | Yes |
