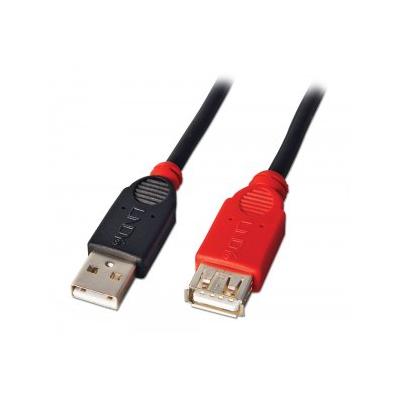

5m USB 2.0 Slimline Active Extension Cable - Black

The simple and affordable USB extender. 5 metre USB 2.0 Active Extension Repeater Lead. Plug and Play - no special software installation required. Compatible with both USB 2.0 and USB 1.1 devices. Connectors: Type A USB Male to Type A USB Female. For even greater distances simply connect up to 5 cables in series. Compatible with USB 2.0 equipped PCs and Macs. 2 year warranty. Also available is our USB Active Extension System which can support distances of up to 56m. The LINDY USB Extension Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m. Up to 5 extension cables can be chained together to achieve a distance of 25m. The cable's unique. slimline design allows the active electronics to fitted into a standard USB connector - an advantage over other active USB leads which use special. bulky connectors.

• The simple and affordable USB extender
• 5 metre USB 2.0 Active Extension Repeater Lead
• Plug and Play - no special software installation required
• Compatible with both USB 2.0 and USB 1.1 devices
• Connectors: Type A USB Male to Type A USB Female
• For even greater distances simply connect up to 5 cables in series
• Compatible with USB 2.0 equipped PCs and Macs
• 2 year warranty

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type A Female
• Power: -
• Housing Material: Plastic
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• USB A Male: 15x40x6mm (0.59x1.57x0.24in)
• USB A Female: 15x45x8mm (0.59x1.77x0.31in)

Cable Construction

Length: 5m (16.4ft)
• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.8mm (0.19in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 24AWG+28AWG
• Shielding: AL Mylar

Specifications

• Supported Bandwidth: 480 Mbps
• Nominal Attenuation:
• 24AWG: 93.25Ohm/km
• 28AWG: 237.25Ohm/km
• Minimum Bend Radius: 48mm (1.89in)
• Maximum Tensile Load: -
• Operating Temperature: 0°C - 70°C (32°F - 158°F)
• Storage Temperature: -10°C - 80°C (14°F - 176°F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 2.0

Miscellaneous

• Packaging Type: Blister
• Packaging Dimensions: 214x146x38mm (8.43x5.75x1.5in)
• Net Weight: 0.18kg (0.4lb)
• Gross Weight: 0.2kg (0.48lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH

Package Contents

• USB 2.0 Active Extension Slim 5m

Purchasing Information

• No.: 42817
• EAN: 4002888428170

This product is also available in other lengths

• 42630 - 10m (32.8ft) with hub
• 42631 - 20m (65.62ft)

EAN # : 4002888428170
