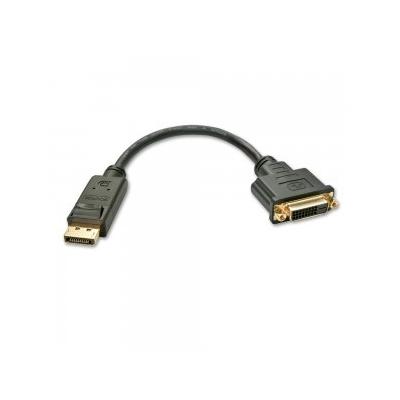

DisplayPort Male to DVI-D Single Link Female Cable

The Lindy DisplayPort 1.2 to DVI Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a DVI monitor. It supports high definition video resolutions up to 1920x1080@60Hz.

The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug & Play installation.

• Converts a DisplayPort signal into DVI
• Supports resolutions up to 1920x1080@60Hz
• Add a DVI monitor as a secondary display
• Quick and simple Plug & Play installation
• 2 year warranty

Specifications

• AV Interface: DisplayPort to DVI
• Interface Standard: DisplayPort 1.2 / DVI
• Supported Bandwidth: 10.8Gbps
• Maximum Input Resolution: 1920x1080@60Hz
• Maximum Output Resolution: 1920x1080@60Hz
• Chipset: NXP 3361B
• HDCP Support: HDCP 1.4
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: -

Connectors

• Input: DisplayPort Male
• Output: DVI-D Female (Single Link)

Physical Properties

• Dimensions (approx.) WxDxH:47.2x38.7x15.8mm (1.86x1.52x0.62in) 20x36x11mm (0.79x1.42x0.43in)/DP
• Cable Length: 150mm (5.91in)
• Housing Material: PVC
• Jacket Material: PVC
• Jacket Diameter: 6.5mm (0.26in)
• Minimum Bend Radius: 65mm (2.56in)
• Net Weight: 0.053kg (0.12lb)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 20 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Polybag
• Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
• Gross Weight: 0.062kg (0.14lb)
• Warranty (Years): 2
• Certificated:CE, FCC, RoHS & REACH

Package Contents:

• DisplayPort 1.2 to DVI Converter

EAN # : 4002888410045
