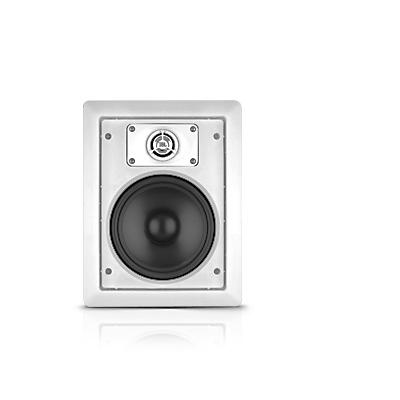

The Control 126W is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Components:
165 mm (6.5 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround. :
25 mm (1 in) pure-titanium dome low diffraction swivel aimable titanium tweeter.
High-slope crossover for natural midrange sound.
Extended bandwidth performance of 38 Hz – 20 kHz.
50 W continuous (100 W program, 200 W peak) power handling (126 W).
Frequency Range : 38 Hz - 20 kHz
(-10 dB)
Power Capacity : 200 W Peak
100 W Continuous
Program Power
50 W Continuous
Pink Noise
Sensitivity : 88 dB SPL,
1W, 1 m (3.3 ft)
Nominal Impedance : 8 ohms
Low Frequency : 165 mm (6.5 in) polymer-coated aluminum cone.
High-Frequency : 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations : Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network : 3rd order (18 dB/oct) Low Pass to the woofer and 3rd order (18 dB/oct) High Pass to the tweeter.
Optimum Air Cavity Behind Speaker : 20 to 40 liters (0.7 to 1.4 cu ft)
Maximum Wall Thickness : 32 mm (1.25 in)
Cutout Size (H x W) : 246 x 181 mm (9.7 x 7.2 in),
Shipping Weight (ea) : 126 W: 4.8 kg (10.5 lb)
Included Accessories : Cutout template & paint shield
Optional Accessories : MTC-126RIF Rough-In Frame for new construction installation to wallstuds.

Please call us for more detailed stock information on 0161 8681240 we may have some in our Sound Technology warehouse

EAN # : 50036904988
