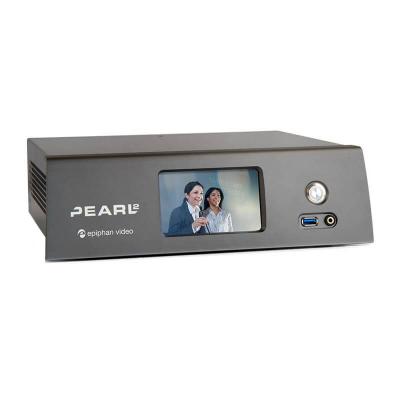

Epiphan Pearl 2 all-in-one 6 input video production system

All In One Video Encoder and Video Production System
Key Features
• All in one video encoder and video production system
• Capture 6 video sources at once
• NDI® and NDI|HX support
• Capture stunning *4K video at 30 fps.
• Seamless CMS support for Kaltura and Panopto
• Easily integrate with Crestron AV Systems
• Remote login - Login to your Pearl-2 securely from anywhere over an Internet connection
• Network security compliant with 802.1x support, RTMPS encryption for secure live streaming, SFTP and HTTPS data encryption
• Simultaneously live stream to YouTube, Facebook and any other CDN or video portal
• Switch video sources live
• Design your own custom layouts, including picture in picture, using the drag-and-drop editor in Pearl-2’s web-based Admin panel
• Single person operation
• Output video to local displays
• Stream locally - Use Pearl-2’s built-in streaming server to share via unicast or multicast stream to up to 50 viewers
• Stream to CDNs - Supported CDNs including Facebook Live, Youtube, Wowza, Livestream, Akamai, Ustream and others
• Capture ISOs in full detail
• CMS/LMS integration - Blackboard, Kaltura, Mediasite and Moodle
• Available as desktop, rackmount or rackmount twin

Epiphan Pearl-2™ is the easiest way to do *4K live streaming, switching and recording.
Reliable, simple live streaming with Pearl-2’s integrated live video production workflow. Manage your streaming, recording and live switching in one place with this all in one video encoder and video production system.

*Requires the 4K feature add-on

Product Description
Capture 6 Video Sources At Once
Pearl-2 works with video sources from SD to 4K. Connect up to six sources at once to encode and stream one *4K Ultra HD program or up to six 1080p Full HD programs. Use any combination of your video sources connected to the HDMI, 4K HDMI, 12G SDI, or USB video input ports, or from IP cameras over your network.

*Requires the 4K feature add-on

NDI® and NDI|HX Support
Get low latency, broadcast quality video over the LAN. Simply connect Pearl-2 to your existing Gigabit Ethernet network. Pearl can access video content from a wide variety of NDI sources instantly – and share video output too! You know you’re saving time and resources when setup is this easy.

Stunning 4K Video
Harness the power of Pearl-2’s 6th generation Intel i7 processor to capture stunning *4K video at 30 fps. Pearl-2’s hardware-accelerated encoder provides flawless H.264 encoding for maximum compatibility and performance with any video portal or player.

*Requires the 4K feature add-on

Seamless CMS Support for Kaltura and Panopto
Pearl-2 works seamlessly with Kaltura and Panopto (coming soon). Full API integration means there’s no complicated programming required. Just register and start scheduling your video events right away. Pearl-2 offers a versatile and no-fuss experience for multi-camera scheduled VOD events, ad hoc events, and webcasting using either RTMP or RTMPS. With security features like 802.1x, RTMPS, HTTPS and LDAP built-in, Pearl-2 makes a great hardware encoder solution for lecture capture and corporate communications.

Easily Integrate Easily Integrate With Crestron AV Systems
Using the Crestron-developed Control Module, the bulk of the heavy coding is already done. Integrating Pearl-2 into your Crestron AV system is a snap. Build upon the Crestron Control Module’s foundation with confidence knowing that Pearl’s comprehensive API is accessible over HTTP or HTTPS for greater security. Epiphan Video is a certified Crestron partner.

Remote Login
Login to your Pearl-2 securely from anywhere over an Internet connection. Quickly take control of Pearl Mini for remote rescue troubleshooting, support technicians in the field, control recording, switching, and more.

IT Friendly
IT friendly and network security compliant with 802.1x support, RTMPS encryption for secure live streaming, SFTP and HTTPS data encryption.

Custom Layout Designer – Now With Chroma Key!
Design your own custom layouts, including picture in picture, using the drag-and-drop editor in Pearl-2’s web-based Admin panel. Combine, crop and scale up to 6 video sources. Customize it completely with backgrounds, overlay images, text, and timestamping. Chroma key support for green screens and third party titling software to include rich animations and lower thirds.

Stream to Viewers Everywhere
Simultaneously live stream to YouTube, Facebook and any other CDN or video portal. At the same time, use the built-in streaming server to stream locally to web browsers, smart TVs and set-top boxes.

Switch Video Sources Live
Use the touch screen or Epiphan Live to preview and change the live content in your video programs. See changes immediately in your live video stream and on displays connected to Pearl-2’s 4K HDMI video output ports.

Monitoring and Switching Made Easy
Simple to use monitoring and live switching between sources or layouts using Epiphan Live, a control interface designed for touch screen devices. Control your streaming and recording from any mobile device or computer on your local network.

Pro Audio Support
Capture embedded HDMI and SDI audio or use the XLR/RCA ports for professional level audio from mixing consoles and sound equipment. Built-in attenuation and gain adjustment mean you get perfect sound fidelity.

Keep Your Recording Safe
Hold hundreds of hours of HD recordings on the 512 GB solid state hard-drive. Configure automatic file transfer to a local USB drive with USB 3.0 file transfer speed or to networked storage to ensure your files are always protected.

Single Person Operation
Control and monitor your live video production with Pearl-2’s touch screen. With a touch of the finger, turn on streaming, recording or switch the layout in the live stream. Connect your headphones and monitor audio using the front-mounted 3.5 mm audio jack and on-screen VU meter.

Plug and Play, or Tweak to Perfection
Let Pearl-2 set everything for you automatically or use the web-based Admin panel to configure bitrate, frame size, layouts and more!

Output Video to Local Displays
Show content to front of house or send it to a larger confidence monitor with Pearl-2’s two 4K HDMI video output ports. Configure to share any input source or switched program output.

Stream Locally
Use Pearl-2’s built-in streaming server to share via unicast or multicast stream to up to 50 viewers with popular streaming protocols such as HTTP, HLS, FLV, ASF, UPnP and SAP.

Stream to CDNS
Publish your live video stream to a large audience using an enterprise streaming server or CDN using RTMP or RTSP. Supported CDNs including Facebook Live, Youtube, Wowza, Livestream, Akamai, Ustream and others.

Capture ISOS In Full Details
Stream your final program output, in any desired resolution, while also recording high quality ISOs for post-processing.

CMS/LMS Integration
Pearl-2 integrates easily with content management systems (CMS) and with learning management systems (LMS) such as Blackboard, Kaltura, Mediasite and Moodle. Our customers love Pearl-2 because it works with the systems you already have in place.
NEW! Direct integration with CMS Kaltura.

Frequently Asked Questions
How Do I Control PEARL-2?
You can use Pearl-2’s touch screen display and operator-friendly Epiphan Live web control panel for simple confidence monitoring and stream/record control. And secure remote login allows you to control your Pearl-2 from just about anywhere there’s access to the Internet.

Developers can use the HTTP/HTTPS or RS-232 APIs to control Pearl-2. As well, Crestron developed a control module specifically for Pearl-2 that provides a solid base for you to build Pearl-2 in to your Crestron AV system.

How Do I Configure PEARL-2?
Pearl-2 is ready to use right out of the box! Plug in a source into the back of Pearl-2 and you can capture, stream and record right away! For additional configuration, use the web-based Admin panel interface.

The touch screen lets you control switching for Pearl-2’s video mixer, load saved configuration presets and perform recording or streaming control. Advanced users can use Pearl-2’s HTTP or RS-232 APIs to integrate with larger systems.

Secure remote login lets you access the web-version of the Admin panel so you can do rescue troubleshooting and channel configuration from just about anywhere there’s Internet access.

Is Remote Login Secure?
Yes! A secure propriety tunnel over port 443 is used to access the Internet so you can do rescue troubleshooting, recording control, and even channel configuration from just about anywhere there’s access to the Internet.

How Many Sources Can PEARL-2 Capture?
Pearl-2 can encode one Ultra HD 4K program (with two 4K sources and two HD sources) or up to six Full HD 1080p programs at a time. Within your program(s), you can use any combination of IP cameras and sources connected to Pearl-2’s HDMI, 4K HDMI, USB video, or 12G-SDI ports.

Does PEARL-2 Come With HEVC/H.265 CODEC for 4K Encoding?
No. Pearl-2 currently supports AVC video encoding (e.g. H.264 and MJPEG codecs) for encoding at all resolutions. However, Pearl-2’s processing power allows the possibility of supporting HEVC and other codecs in the future.

Can PEARL-2 Capture From IP Cameras?
Yes. Pearl-2 can capture from RTSP sources over a network (such as IP cameras or even other Pearl or Pearl-2 systems) at resolutions up to 1080p. See our online user guide for a list of RTSP cameras we have tested so far.

Can I Plug My USB Camera Into PEARL-2?
Yes! The USB video ports on the back of Pearl-2 can accept video and audio from up to two USB web cameras at a time. You can change the settings on the cameras using the source controls on the admin panel, and put them in your layouts just like any other video source.

Does PEARL-2 Stream to IPad, IPhone, ITouch?
Yes. Pearl-2 uses Apple’s HTTP Live Streaming technology to create a separate native stream for Apple iOS devices such as iPad, iPhone, and iTouch.

Does PEARL-2 Stream to Tablets and Smartphones?
Yes. Pearl-2 supports HLS streaming. When this feature is enabled viewers can access the stream using a tablet or smartphone device. Tablet and smartphone viewers can also view other media streams depending on the device and viewing application.

In the Box
• Pearl 2
• 1 x hard shell case
• 1 x SDI cable (3 feet / 1 meter in length)
• 1 x HDMI cable (3 feet / 1 meter in length)
• 1 x HDMI to DVI adapter
• 1 x Ethernet cable
• 1 x region-specific power supply cable (6 feet / 1.8 meters in length)

EAN # : 00019962359606
