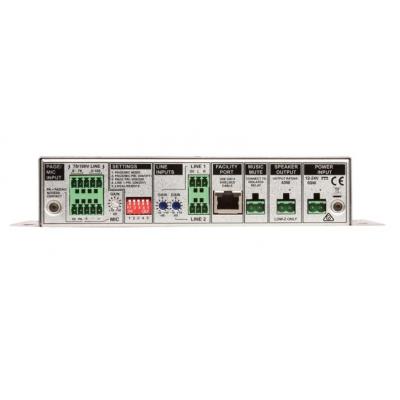

MA40F Mini Amplifier

The MA40F is a mini amplifier providing 40W Output at 4Ω (low impedance). It is fitted with a paging microphone input with access contacts, a useful 70/100V line input option, a further two line inputs and a facility port input option allowing connection of the LM-2 wall input module and the new Cloud BT-1F Bluetooth Audio Wireless input module.

The MA40F is powered via a 12-24V power supply and offers music mute functionality to allow simple connection to fire alarm and other interfaces which makes it highly flexible and suitable for use in themed/visitor attractions including use in bus / tram / river tour guide systems.

Features

• 40W 4Ω Output
• 2 line inputs with individual input gain
• 70v / 100V line input
• Paging Microphone Input with access contacts (SW/VOX)
• Facility Port Input
• Music Mute
• 12-24V Power Supply
