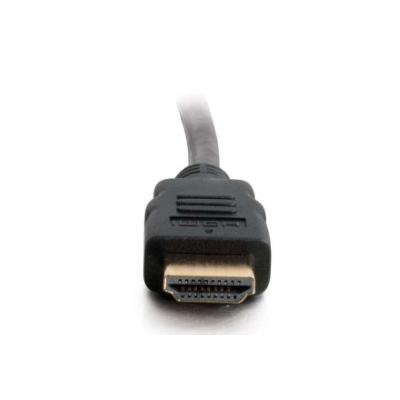

C2G 2m HDMI Male-Male 4k Cable with Ethernet

Product Details

RRP: £7.99

Your Price: N/A

Mfr. Part #: 82005

Our Part #: C2G82005

Description

2m HDMI Male-Male 4k Cable with Ethernet

2m High Speed HDMI® with Ethernet Cable - 4K 60Hz

Connector 1 : (1) HDMI Male
Connector 2 : (1) HDMI Male

Product Description

The C2G High Speed HDMI with Ethernet Cable supports all HDMI 2.0 features and is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4k (2160p). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty. This cable can be utilized for network switch stacking with compatible equipment. Experience the latest HDMI features including:

• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Colour and x.v. Colour™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.

Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable. To utilize HDMI stacking for network equipment all attached equipment must use the same firmware.

Electrical Characteristics

• HDMI Specification: 2.0
• Nominal Velocity of Propagation - 18Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 100?
• Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
• HDMI (3D, Deep Colour, x.v.Colour™, Dolby® True HD, and DTS-HD Master Audio), Full 1080p resolution
• High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer
• HDMI-CEC system control compatibility
• HDMI Ethernet Channel (when used with HDMI Ethernet channel supported source and sync equipment).

Physical Characteristics

Voltage Rating - 30V
Minimum Bend Radius - 60°
Temperature Rating - 80°C
Operating Temperature Range - -20° - 80°C
Storage Temperature Range - -25° - 85°C
Approvals - RoHS Compliant
Package Type - Polybag

Conductor 1 (5 pair)

Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
Drain Wire - 30AWG (7/0.10), Tinned Copper
Shield - Aluminium Foil, 100% Coverage

Conductor 2 (4 conductors)

Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6

Overall Cable

Drain Wire - 30AWG (07/0.10), Tinned Copper
Foil Shield - Aluminium Foil, 100% Coverage
Braided Shield - 16/4/0.12, Al/Mg
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

Connectors (2)

Connector Type - HDMI - Type A
Pin Construction - Phosphor Copper
Plating - 1µm Gold
Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm

Package Contents

1x High Speed HDMI with Ethernet Cable

Read more

2m HDMI Male-Male 4k Cable with Ethernet

2m High Speed HDMI® with Ethernet Cable - 4K 60Hz

Connector 1 : (1) HDMI Male
Connector 2 : (1) HDMI Male

Product Description

The C2G High Speed HDMI with Ethernet Cable supports all HDMI 2.0 features and is perfect for home theater or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4k (2160p). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty. This cable can be utilized for network switch stacking with compatible equipment. Experience the latest HDMI features including:

• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Colour and x.v. Colour™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
This fully-functional, high bandwidth cable is tested to perform at industry standards and is backed by a lifetime warranty.

Note: Both the source device and display must support a HDMI feature in order to pass that feature through this cable. To utilize HDMI stacking for network equipment all attached equipment must use the same firmware.

Electrical Characteristics

• HDMI Specification: 2.0
• Nominal Velocity of Propagation - 18Gbps
• DC Resistance - 300V
• Dielectric Strength - AC 500V/minute
• Insulation Resistance - 100?
• Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB
• HDMI (3D, Deep Colour, x.v.Colour™, Dolby® True HD, and DTS-HD Master Audio), Full 1080p resolution
• High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer
• HDMI-CEC system control compatibility
• HDMI Ethernet Channel (when used with HDMI Ethernet channel supported source and sync equipment).

Physical Characteristics

Voltage Rating - 30V
Minimum Bend Radius - 60°
Temperature Rating - 80°C
Operating Temperature Range - -20° - 80°C
Storage Temperature Range - -25° - 85°C
Approvals - RoHS Compliant
Package Type - Polybag

Conductor 1 (5 pair)

Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.8mm
Drain Wire - 30AWG (7/0.10), Tinned Copper
Shield - Aluminium Foil, 100% Coverage

Conductor 2 (4 conductors)

Conductor Type - 30AWG (7/0.10), Tinned Copper
Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.6

Overall Cable

Drain Wire - 30AWG (07/0.10), Tinned Copper
Foil Shield - Aluminium Foil, 100% Coverage
Braided Shield - 16/4/0.12, Al/Mg
Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

Connectors (2)

Connector Type - HDMI - Type A
Pin Construction - Phosphor Copper
Plating - 1µm Gold
Dimensions (HxWxL) - 10.0 x 20.1 x 37.1mm

Package Contents

1x High Speed HDMI with Ethernet Cable

EAN # : 757120820055

Features
TypeHDMI Cables Male to Male
Length2m
ColourBlack
