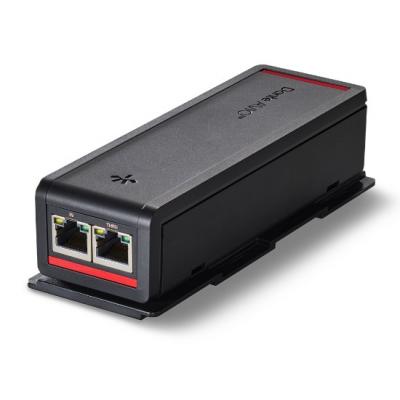

Dante AVIO Install 4-Ch Analog Output Adapter

The Dante AVIO Install 4-Ch Analog Output Adapter routes up to four channels of Dante audio to amplifiers, line mixers, DSPs, and other analog playback equipment. Euroblock terminal connections support permanent installation wiring, and dual switched Ethernet ports allow PoE power and network connectivity to be passed to up to four adapters from a single switch port.

Features:
• Deliver up to 4 channels of Dante audio to line-level analog equipment
• 4 channels supported at 44.1/48 kHz; 2 channels supported at 88.2/96 kHz
• Dual 100 Mbps switched Ethernet ports for daisy-chain connection (up to 4 adapters)
• PoE powered; no external power supply required

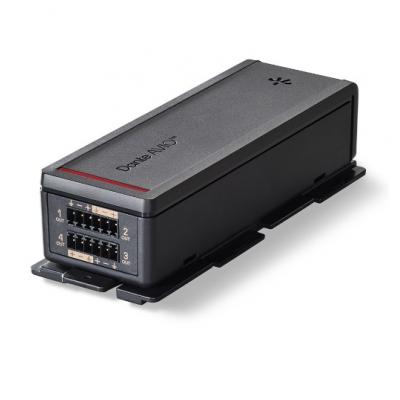

• Euroblock terminal connections for permanent installation wiring

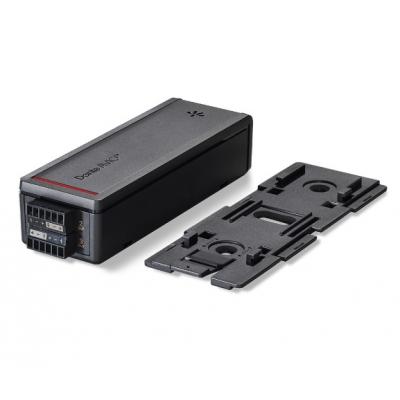

• Includes Dante AVIO ClickGrid mounting bracket for flexible installation
• Configured and routed using Dante Controller

Specifications:
• Mounting options: Mounting Bracket (included)
• Connector type: 2 x 6-pin Euroblock terminal, 3.5mm pitch
• Power: Class1 802.3af PoE
• Power Consumption: Standalone: 2 watts
• Operating Temp: -10 to +45C
• Storage Temp: -15 to +60C
• Max signal level (balanced): +4dBu / 0dBu / 0dBV / -10dBV
• Frequency Response: 20Hz to 20kHz (-/+0.2dB)

EAN # : 9353345000121
