Aten VE2812EUT-AT-E

Product Key Features
• Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.
• Superior video quality:
- HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.
- VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.
• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
• Supports Auto Switch – automatically switches to a newly plugged-in source.

Product Overview

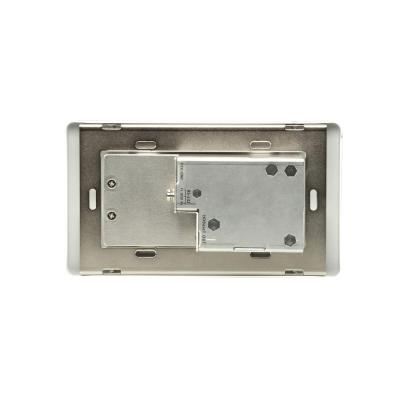

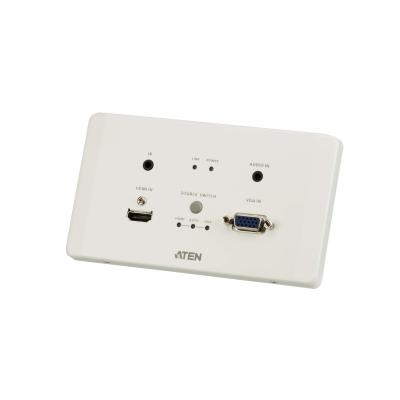

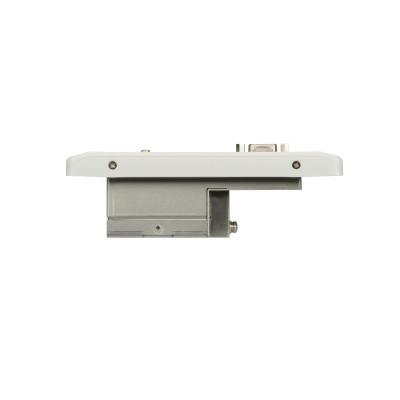

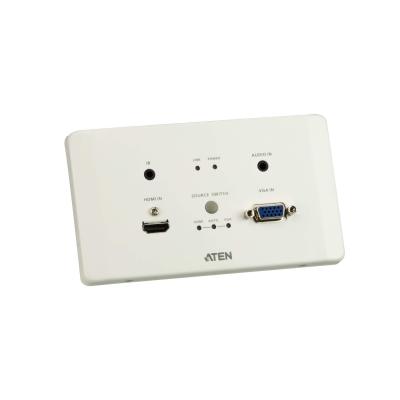

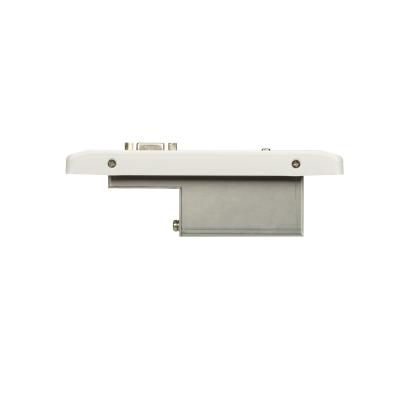

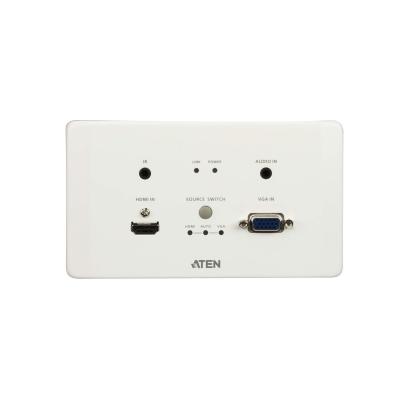

ATEN VE2812EUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. With EU Wall Plate design, the VE2812EUT can be conveniently mounted in a two-gang junction box. The VE2812EUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

For utility flexibility, the VE2812EUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, The VE2812EUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.

Note: Optional accessory (2X-050G) is available with a separate purchase if you wish to mount the VE2812EUT into the cable cubby.

Product Package Contents
• 1x VE2812EUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate.
• 1x 3 Pin RS-232 Terminal Block.
• 1x 2 Pin Power Terminal Block.
• 1x Mounting Kit.
• 1x Power Adapter.
• 1x User Instructions.

More Product Key Features
• Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable.
• Designed to mount in a two-gang junction box.
• HDMI 1.4 (3D, Deep color, 4K); HDCP 2.2 compliant.
• Superior video quality:
- HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.
- VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.
• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
• Supports Auto Switch – automatically switches to a newly plugged-in source.
• Functions as a switch or a converter.
- A Switch: Connects two sources (HDMI or VGA).
- A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI).
• Supports RS-232 channel transmission or command mode for source switch control.
• Compatible Receivers – VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers.
• Plug-and-play.
• Built- in 8KV / 15 KV ESD protection.
• LED indication of sources and device status.

Product Specifications
Video Input
• Interfaces: 1 x HDMI Type A Female (Black), 1 x HDB-15 (VGA) Female (Blue).
• Impedance: HDMI: 100 Ώ, HDB-15 (VGA): 75 Ώ.
• Max. Distance: 1.8 m.

Video
• Max. Data Rate: 10.2Gbps (3.4Gbps per lane).
• Max. Pixel Clock: 340 MHz.
• Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, Consumer Electronics Control (CEC).
• Max. Resolutions / Distance: HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);, 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4).

Audio
• Input: 1 x HDMI Type A Female (Black), 1 x Mini Stereo Jack Female (Green).

Connectors

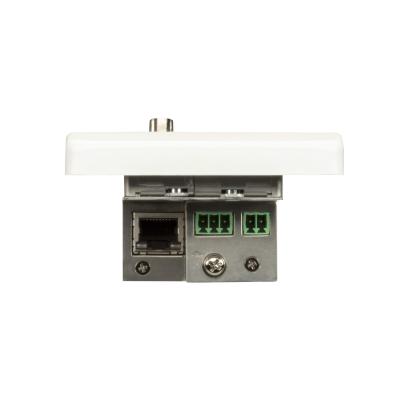

• Unit To Unit: 1 x RJ-45 Female.
• Power: 1 x Terminal Block, 2 pole (Green).

Control
• RS-232: Connector: 1 x Terminal Block, 3 pole (Green), Baud Rate: 19200, Data Bits:8,, Stop Bits:1, no parity and flow control.
• IR: 1 x Mini Stereo Jack Female (Black).

Switches
• Video Input Port Selection: 1 x Push Button - HDMI, VGA and AUTO.

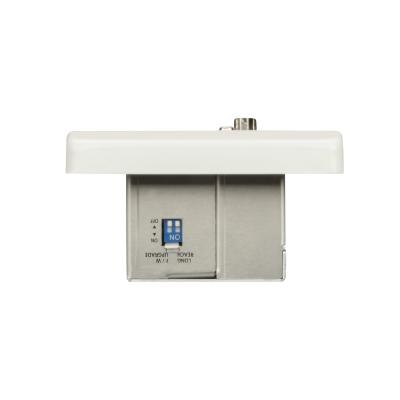

• Long Reach Mode Switch: 1 x Slide Switch - ON/OFF.
• Firmware Upgrade : 1 x Slide Switch - ON/OFF.

Power Consumption
• DC5V:3.14W:14.71BTU.

Environmental
• Operating Temperature: 0 - 40°C
• Storage Temperature: -20 - 60°C
• Humidity: 0 - 80% RH, Non-Condensing

Physical Properties
• Housing: Metal.
• Weight: 0.35 kg ( 0.77 lb ).
• Dimensions (L x W x H): 5.00 x 10.80 x 5.17 cm (1.97 x 4.25 x 2.04 in.).
• Faceplate Dimensions (L x W x H): 8.60 x 15.10 x 1.35 cm (3.39 x 5.94 x 0.53 in.).

Note:
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
